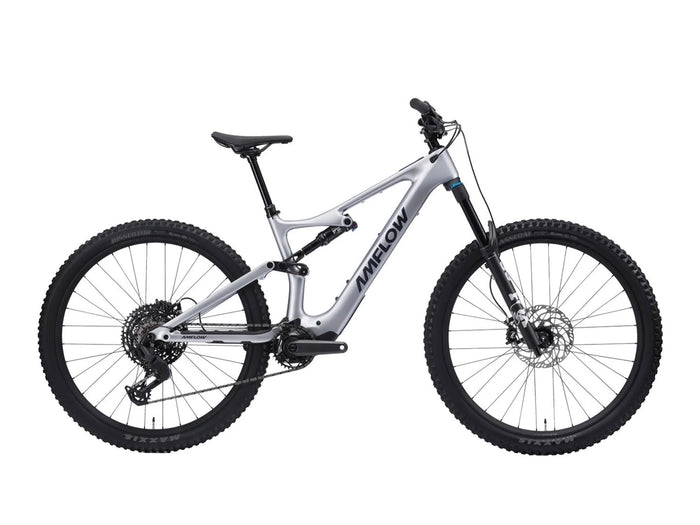

Amflow PL Carbon eMTB
More Specs
Recommended Rider Height
M: 5'4"-5'10" | L: 5'7"-6'1" | XL: 5'9"-6'3" | XXL: 6'1"-6'7"
Local Pickup Option
We offer free assembly on local pickup orders.
The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.
A full-power eMTB with a stunningly lightweight body. Meticulously designed and crafted to deliver the ultimate ride.
Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, for breathtaking speed and agility.
Drive Assistance
Powerful Drive, Smooth Assistance
The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.
Five Modes, Targeted Assistance
In addition to traditional assistance modes of Eco, Trail, and Turbo, the Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes.
For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.
Intelligent Walk Assist, Effortless Control
Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.
Battery and Range
High-Capacity Battery, Extended Range
The Avinox Drive System's battery weighs just 2.87 kg and features ultra-high energy density for extended range.
Intelligent Battery Health, Extended Service Life
Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity.
GaN 3x Fast Charging
The palm-sized fast charger is capable of charging the battery from 0% to 75% in just 1.5 hours.
Geometry and Handling
Agile and Responsive, All-round Performance
Versatile Geometry to Dominate Terrain
Amflow PL's frame design features cutting-edge geometry, offering balanced performance that's both lightweight and hyper-agile. This dynamic handling empowers riders to easily take on rugged trails and more technical rides.
29" and 27.5" Compatible
Amflow PL is compatible with both 29 and 27.5-inch rear wheels. By adjusting the flip chips, you can accommodate both sizes without altering the frame's geometric center of gravity. Whether you want to hone your technical skills or simply enjoy high speeds, Amflow PL is ready to ride.
Superior Suspension
The rear shock, co-tuned with FOX, offers a sensitive initial stroke response to effectively filter out minor vibrations. It also provides powerful end-stroke support to prevent bottom-outs during continuous high-speed impacts or steep descents, so you can fully enjoy every off-road adventure.
Touchscreen Control System
Built-in Display, Smartphone Connectivity
The brain of the Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.
Anti-Theft Protection
Users can configure multiple anti-theft settings on the Avinox Ride app, including password authentication and abnormal movement alerts. If the bike is moved, an alarm will sound, and the Avinox Ride app will send a push notification, making it convenient for users to check the bike's real-time location and status. Users can also activate a Phone Key to unlock the bike automatically according to proximity.
Dual Wireless Controllers, Essential Features at Your Fingertips
The Bluetooth-enabled Wireless Controllers connect to the Control Display, allowing convenient assist mode switches while riding.
Understand This eBike
Not sure what all the numbers mean? Here are the key things to know when comparing eBikes.
How far will this Amflow PL Carbon really go?
Amflow rates this bike for up to 97 miles of range. Real-world range can vary based on pedal-assist level, rider weight, bike weight, terrain, speed, temperature, tire pressure, cargo, and throttle use.
Riders using mostly throttle or the highest assist setting will often see closer to about half of the advertised maximum range. Lower assist levels and more rider pedaling can significantly extend range.
How powerful is the motor on this Amflow PL Carbon?
This bike uses a 250W Mid-Drive, 105 Nm, with up to 850W / 120 Nm (1000W in Boost mode) of peak output.
The motor's nominal power describes the power it is designed to provide continuously. Peak power is the higher amount it can deliver for short periods, such as accelerating from a stop or climbing a hill.
For eBike classification and legal compliance, nominal motor power is generally accepted as the relevant power figure rather than the short-duration peak power number. Regulations can vary by state and local jurisdiction, so riders should always follow the rules where they ride.
Higher motor power can provide stronger acceleration and better performance on hills or with heavier riders and cargo, but wattage alone doesn't tell the whole story. Torque, bike weight, gearing, wheel size, and the motor controller also affect how powerful an eBike actually feels.
What does the battery size mean on this Amflow PL Carbon?
This bike uses a 800Wh Avinox Li-ion battery. Battery capacity on eBikes is commonly measured in watt-hours (Wh). The higher the watt-hour number, the more energy the battery can store.
As a general rule, a larger battery can provide more riding range, but battery size alone doesn't determine how far an eBike will go. Bike weight, motor efficiency, assist level, throttle use, rider weight, terrain, speed, tire pressure, temperature, and cargo can all affect battery consumption.
Watt-hours also make it easier to compare battery capacity between different eBikes. For example, a 700Wh battery stores roughly 40% more energy than a 500Wh battery, even if the bikes use different battery voltages.
Keep in mind that a larger battery usually adds some weight and can take longer to charge, so the biggest battery isn't necessarily the best choice for every rider.
What eBike classes can this Amflow PL Carbon be used as?
This Amflow PL Carbon has an assisted top speed of 28 mph and can be configured for Class 1 or Class 3 operation.
Under the commonly used three-class eBike system:
Class 1: Pedal assist only, with motor assistance up to 20 mph.
Class 2: Includes throttle operation up to 20 mph.
Class 3: Pedal assist up to 28 mph. Class 3 operation generally does not include throttle assistance.
Some eBikes can be configured for more than one class, allowing the rider to adjust the bike for different riding locations or regulations. eBike laws and trail-access rules vary by state and local jurisdiction, so riders should check the rules where they plan to ride.
What's the difference between torque and cadence sensors?
eBikes typically use either a torque sensor or a cadence sensor to determine how the motor responds while you pedal.
Torque sensors measure how hard you're pedaling and provide motor assistance in proportion to your effort. This generally creates a smoother, more natural, and more responsive riding experience. The harder you pedal, the more assistance the motor provides.
Cadence sensors primarily detect whether the pedals are turning. Once you begin pedaling, the motor provides assistance based largely on the selected assist level rather than how much force you're putting into the pedals.
Torque sensors are generally considered the more refined system and have become increasingly common on modern eBikes. Cadence sensors can still be useful for riders who prefer the motor to provide more assistance with less pedaling effort.
